WB 60-8A
For decades, machines of the WB range have been world-widely used for long wire-forms 3D bending.
All fitted with an automatic centralized lubrication, their tables can be set either horizontally or with inclination.
A displacement of the bending head from left to right, perpendicularly to the wire line, extends the range of shapes directly produced, thus avoiding secondary operations.
Technical characteristics
| Wire diameters | 2,0 – 6,0 mm (soft wire) 2,0 – 4,0 mm (hard wire) |
| Axes | 8 |
| Maximum wire feed speed | 54 m/mn |
| Distance “bending head – machine body” | 594 mm |
| Dimensions | 3,3 x 2,0 x 1,6 m |
| Weight | 3 200 kg |
Videos
Pictures
Independant movements
Programming software

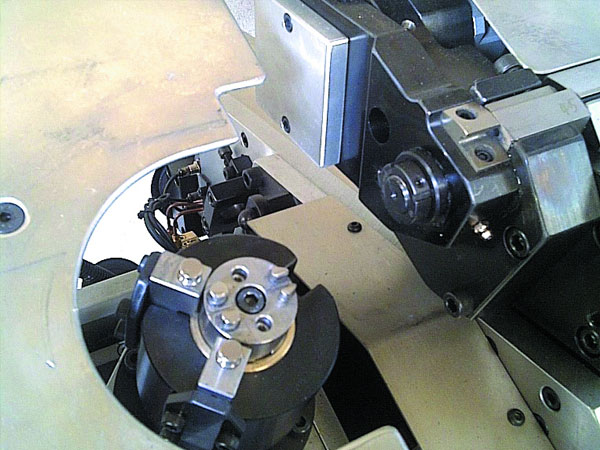

Bending head and pins
Rotary feeding
Cutting system
